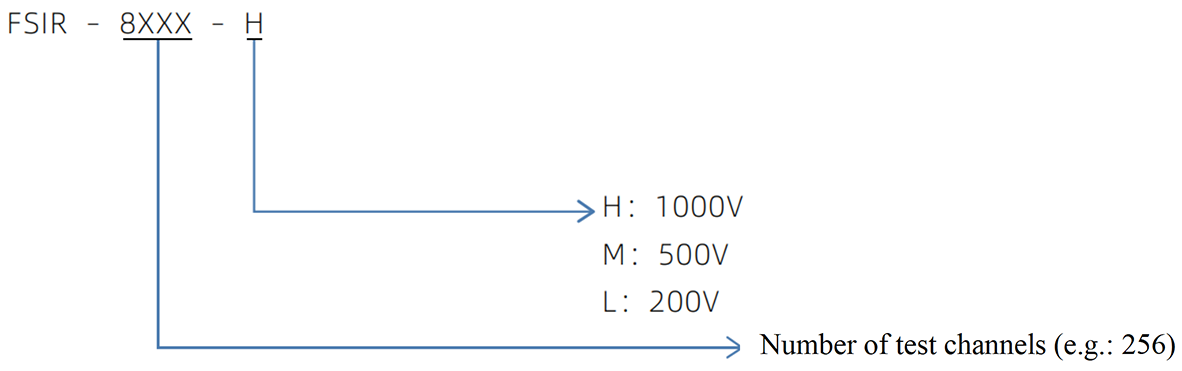

Model

200V (L)

500V (M)

1,000V (H)

Number of single-cabinet channels

16CH*N (max. 320CH)

Channel extension

Parallel operation and combination, up to 3,200CH

Independent group's channels

16CH

Independent group

Independent or combinatorial group with 16CH as the radix number

Working hours

1~9,999h

Common positive/negative electrode test

Conformance

CAF test

Conformance

Bias voltage

-100~+200V DC

-100~+500V DC

-100~+1,000V DC

Test voltage

+1.0~+200V DC

+1.0~+500V DC

+1.0~+1,000V DC

Stepped test voltage

0~100V/0.01V stepping

100~200V/0.1V stepping

0~100V/0.01V stepping

100~500V/0.1V stepping

0~100V/0.01V stepping

100~1,000V/0.1V stepping

Voltage rise cascade

50V (>100V)

100V (>100V)

100V (>100V)

Test voltage precision

≤ ±0.5V

≤ ±0.5V

≤ ±0.5V

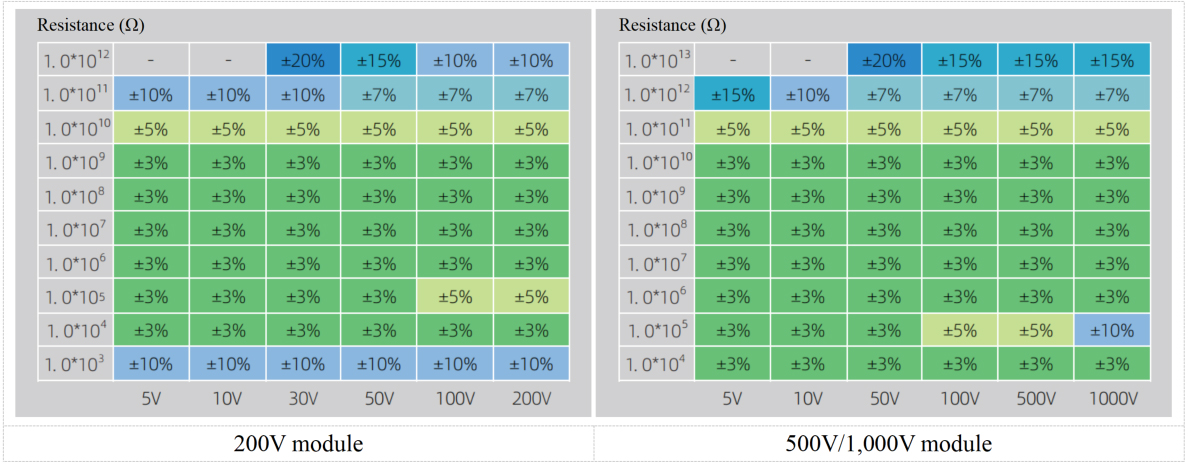

Test scope of resistance

1×10³~1×10¹²Ω

1×10⁴~1×10¹³Ω

1×10⁴~1×10¹³Ω

Single-cycle test time

All channels/1s

Multiple-cycle interval

0~6,000min (adjustable)

Test voltage stabilization time

0~600s (adjustable)

Over-current protection resistance

Standard 1MΩ (the protection resistance for L-type low voltage module can be up to 1KΩ)

Server

CPU not below I7, memory 16G, 1T mechanical hard disk + 256 solid state disk

UPS protection

Optional

Test cable

Teflon (≧10¹⁴Ω, 200℃)

Standard 3.5m test cable

Overall dimensions

1,800×600×800(mm)

Net weight

About 335kg

Input voltage

AC 220V ± 10%
